ACQ_HW_BASE Class Reference

concrete model of ACQ2106 box. More...

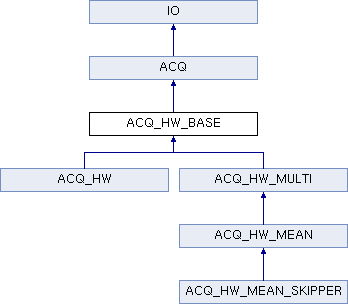

Inheritance diagram for ACQ_HW_BASE:

Protected Member Functions
	ACQ_HW_BASE (int devnum, string _name, VI _vi, VO _vo, VI _vi_offsets, VO _vo_offsets, VI &sys_vi_cursor, VO &sys_vo_cursor)
virtual	~ACQ_HW_BASE ()
virtual void	arm (int nsamples)
	prepare to run a shot nsamples long, arm the UUT. More...
virtual unsigned	tlatch (void)
	returns latest tlatch from lbuf More...
virtual void	action (SystemInterface &systemInterface)
	on newSample, copy VO from SI, copy VI to SI More...
virtual void	action2 (SystemInterface &systemInterface)
	late action(), cleanup More...
Protected Member Functions inherited from ACQ
	ACQ (int devnum, string _name, VI _vi, VO _vo, VI _vi_offsets, VO _vo_offsets, VI &sys_vi_cursor, VO &sys_vo_cursor)
virtual	~ACQ ()

Protected Attributes
Dev *	dev
unsigned	tl0
unsigned *	dox
int	sample
const int	spix
int	pw32_double_buffer
Protected Attributes inherited from ACQ
bool	nowait
	newSample doesn't block for new Tlatch (eg bolo in set with non bolo uuts). More...
unsigned	wd_mask
	watchdog mask. More...
int	pollcount
int	devnum
	AFHBA404 device numbers 0..N. More...

Additional Inherited Members
Public Member Functions inherited from ACQ
virtual string	toString ()
virtual bool	newSample (int sample)
Public Member Functions inherited from IO
	IO (string _name, VI _vi, VO _vo)
virtual	~IO ()
string	getName ()
Static Public Member Functions inherited from ACQ
static ACQ *	factory (int devnum, string _name, VI _vi, VO _vo, VI _vi_offsets, VO _vo_offsets, VI &sys_vi_cursor, VO &sys_vo_cursor)
Public Attributes inherited from ACQ
const VI	vi_offsets
	byte offset for each Input type in Local Vector In More...
const VO	vo_offsets
	byte offset for each Output type in Local Vector Out More...
const VI	vi_cursor
	index for each Input type in System Interface More...
const VO	vo_cursor
	index for each Output type in System Interface More...
Public Attributes inherited from IO
const VI	vi
const VO	vo

Detailed Description

concrete model of ACQ2106 box.

Definition at line 72 of file AcqHw.cpp.

Constructor & Destructor Documentation

ACQ_HW_BASE()

ACQ_HW_BASE::ACQ_HW_BASE ( int  devnum, string  _name, VI  _vi, VO  _vo, VI  _vi_offsets, VO  _vo_offsets, VI &  sys_vi_cursor, VO &  sys_vo_cursor  )

inlineprotected

Definition at line 94 of file AcqHw.cpp.

~ACQ_HW_BASE()

virtual ACQ_HW_BASE::~ACQ_HW_BASE ( )

inlineprotectedvirtual

Definition at line 112 of file AcqHw.cpp.

Member Function Documentation

action()

void ACQ_HW_BASE::action ( SystemInterface &  systemInterface )

protectedvirtual

on newSample, copy VO from SI, copy VI to SI

Parameters

systemInterface

copy SI to VO, copy VI to SI, advance local buffer pointer.

Reimplemented from ACQ.

Reimplemented in ACQ_HW_MEAN.

Definition at line 203 of file AcqHw.cpp.

action2()

void ACQ_HW_BASE::action2 ( SystemInterface &  systemInterface )

protectedvirtual

late action(), cleanup

in slack time, copy SI.OUT to VO archive cursor.

@todo make it optional in case it takes too long

Reimplemented from ACQ.

Reimplemented in ACQ_HW_MEAN.

Definition at line 235 of file AcqHw.cpp.

arm()

void ACQ_HW_BASE::arm ( int  nsamples )

protectedvirtual

prepare to run a shot nsamples long, arm the UUT.

Reimplemented from ACQ.

Definition at line 276 of file AcqHw.cpp.

tlatch()

unsigned ACQ_HW_BASE::tlatch ( void  )

protectedvirtual

returns latest tlatch from lbuf

Reimplemented from ACQ.

Definition at line 271 of file AcqHw.cpp.

Member Data Documentation

dev

Dev* ACQ_HW_BASE::dev

protected

Definition at line 86 of file AcqHw.cpp.

dox

unsigned* ACQ_HW_BASE::dox

protected

Definition at line 89 of file AcqHw.cpp.

pw32_double_buffer

int ACQ_HW_BASE::pw32_double_buffer

protected

Definition at line 92 of file AcqHw.cpp.

sample

int ACQ_HW_BASE::sample

protected

Definition at line 90 of file AcqHw.cpp.

spix

const int ACQ_HW_BASE::spix

protected

Definition at line 91 of file AcqHw.cpp.

tl0

unsigned ACQ_HW_BASE::tl0

protected

Definition at line 87 of file AcqHw.cpp.

---

The documentation for this class was generated from the following file:

• ACQPROC/AcqHw.cpp
