ACQ_HW_MEAN Class Reference

output the mean of nb values More...

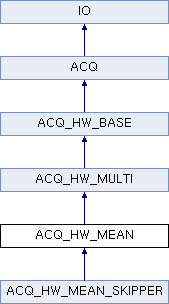

Inheritance diagram for ACQ_HW_MEAN:

Public Member Functions
	ACQ_HW_MEAN (int devnum, string _name, VI _vi, VO _vo, VI _vi_offsets, VO _vo_offsets, VI &sys_vi_cursor, VO &sys_vo_cursor, int nmean)
virtual	~ACQ_HW_MEAN ()
virtual bool	newSample (int sample)
	checks host buffer for new sample, if so copies to lbuf and reports true More...
virtual void	action (SystemInterface &systemInterface)
	on newSample, copy VO from SI, copy VI to SI More...
virtual void	action2 (SystemInterface &systemInterface)
	late action(), cleanup More...
Public Member Functions inherited from ACQ_HW_MULTI
	ACQ_HW_MULTI (int devnum, string _name, VI _vi, VO _vo, VI _vi_offsets, VO _vo_offsets, VI &sys_vi_cursor, VO &sys_vo_cursor, int nbuffers)
virtual	~ACQ_HW_MULTI ()
Public Member Functions inherited from ACQ
virtual string	toString ()
Public Member Functions inherited from IO
	IO (string _name, VI _vi, VO _vo)
virtual	~IO ()
string	getName ()

Protected Member Functions
bool	_newSample (int sample)
Protected Member Functions inherited from ACQ_HW_MULTI
unsigned	tlatch0 (int ib)
Protected Member Functions inherited from ACQ_HW_BASE
	ACQ_HW_BASE (int devnum, string _name, VI _vi, VO _vo, VI _vi_offsets, VO _vo_offsets, VI &sys_vi_cursor, VO &sys_vo_cursor)
virtual	~ACQ_HW_BASE ()
virtual void	arm (int nsamples)
	prepare to run a shot nsamples long, arm the UUT. More...
virtual unsigned	tlatch (void)
	returns latest tlatch from lbuf More...
Protected Member Functions inherited from ACQ
	ACQ (int devnum, string _name, VI _vi, VO _vo, VI _vi_offsets, VO _vo_offsets, VI &sys_vi_cursor, VO &sys_vo_cursor)
virtual	~ACQ ()

Protected Attributes
const int &	nmean
unsigned *	dox
int **	raw
unsigned *	tl0_array
int	verbose
Protected Attributes inherited from ACQ_HW_MULTI
int	pw32_double_buffer
int	nb
int **	raw
unsigned *	tl0_array
int	verbose
Protected Attributes inherited from ACQ_HW_BASE
Dev *	dev
unsigned	tl0
unsigned *	dox
int	sample
const int	spix
int	pw32_double_buffer
Protected Attributes inherited from ACQ
bool	nowait
	newSample doesn't block for new Tlatch (eg bolo in set with non bolo uuts). More...
unsigned	wd_mask
	watchdog mask. More...
int	pollcount
int	devnum
	AFHBA404 device numbers 0..N. More...

Additional Inherited Members
Static Public Member Functions inherited from ACQ
static ACQ *	factory (int devnum, string _name, VI _vi, VO _vo, VI _vi_offsets, VO _vo_offsets, VI &sys_vi_cursor, VO &sys_vo_cursor)
Public Attributes inherited from ACQ
const VI	vi_offsets
	byte offset for each Input type in Local Vector In More...
const VO	vo_offsets
	byte offset for each Output type in Local Vector Out More...
const VI	vi_cursor
	index for each Input type in System Interface More...
const VO	vo_cursor
	index for each Output type in System Interface More...
Public Attributes inherited from IO
const VI	vi
const VO	vo

Detailed Description

output the mean of nb values

Definition at line 367 of file AcqHw.cpp.

Constructor & Destructor Documentation

ACQ_HW_MEAN()

ACQ_HW_MEAN::ACQ_HW_MEAN	(	int	devnum,
		string	_name,
		VI	_vi,
		VO	_vo,
		VI	_vi_offsets,
		VO	_vo_offsets,
		VI &	sys_vi_cursor,
		VO &	sys_vo_cursor,
		int	nmean
	)

Definition at line 393 of file AcqHw.cpp.

~ACQ_HW_MEAN()

virtual ACQ_HW_MEAN::~ACQ_HW_MEAN ( )

inlinevirtual

Definition at line 382 of file AcqHw.cpp.

Member Function Documentation

_newSample()

bool ACQ_HW_MEAN::_newSample ( int  sample )

protected

Definition at line 403 of file AcqHw.cpp.

action()

void ACQ_HW_MEAN::action ( SystemInterface &  systemInterface )

virtual

on newSample, copy VO from SI, copy VI to SI

SIMPLIFY: supports AI32 ONLY! COMPLEXIFY : re-scale as LJ 24 bit number so that HW=1 threshold is still valid, then OR the channel ID back in.

Reimplemented from ACQ_HW_BASE.

Definition at line 429 of file AcqHw.cpp.

action2()

void ACQ_HW_MEAN::action2 ( SystemInterface &  systemInterface )

virtual

late action(), cleanup

Reimplemented from ACQ_HW_BASE.

Definition at line 446 of file AcqHw.cpp.

newSample()

bool ACQ_HW_MEAN::newSample ( int  sample )

virtual

checks host buffer for new sample, if so copies to lbuf and reports true

Parameters

sample

checks host buffer for new sample, if so copies to lbuf and reports true

Reimplemented from ACQ_HW_MULTI.

Reimplemented in ACQ_HW_MEAN_SKIPPER.

Definition at line 414 of file AcqHw.cpp.

Member Data Documentation

dox

unsigned* ACQ_HW_MEAN::dox

protected

Definition at line 372 of file AcqHw.cpp.

nmean

const int& ACQ_HW_MEAN::nmean

protected

Definition at line 370 of file AcqHw.cpp.

raw

int** ACQ_HW_MEAN::raw

protected

Definition at line 373 of file AcqHw.cpp.

tl0_array

unsigned* ACQ_HW_MEAN::tl0_array

protected

Definition at line 374 of file AcqHw.cpp.

verbose

int ACQ_HW_MEAN::verbose

protected

Definition at line 376 of file AcqHw.cpp.

---

The documentation for this class was generated from the following file:

• ACQPROC/AcqHw.cpp
