takes mean of N samples, newSample returns true after skip samples More...

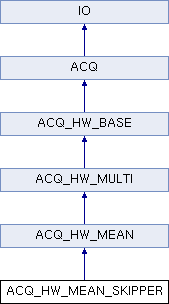

Inheritance diagram for ACQ_HW_MEAN_SKIPPER:

Public Member Functions
	ACQ_HW_MEAN_SKIPPER (int devnum, string _name, VI _vi, VO _vo, VI _vi_offsets, VO _vo_offsets, VI &_sys_vi_cursor, VO &_sys_vo_cursor, int _nmean, int _nskip)

virtual bool	newSample (int sample)
	checks host buffer for new sample, if so copies to lbuf and reports true More...

Public Member Functions inherited from ACQ_HW_MEAN
	ACQ_HW_MEAN (int devnum, string _name, VI _vi, VO _vo, VI _vi_offsets, VO _vo_offsets, VI &sys_vi_cursor, VO &sys_vo_cursor, int nmean)

virtual	~ACQ_HW_MEAN ()

virtual void	action (SystemInterface &systemInterface)
	on newSample, copy VO from SI, copy VI to SI More...

virtual void	action2 (SystemInterface &systemInterface)
	late action(), cleanup More...

Public Member Functions inherited from ACQ_HW_MULTI
	ACQ_HW_MULTI (int devnum, string _name, VI _vi, VO _vo, VI _vi_offsets, VO _vo_offsets, VI &sys_vi_cursor, VO &sys_vo_cursor, int nbuffers)

virtual	~ACQ_HW_MULTI ()

Public Member Functions inherited from ACQ
virtual string	toString ()

Public Member Functions inherited from IO
	IO (string _name, VI _vi, VO _vo)

virtual	~IO ()

string	getName ()

Additional Inherited Members
Static Public Member Functions inherited from ACQ
static ACQ *	factory (int devnum, string _name, VI _vi, VO _vo, VI _vi_offsets, VO _vo_offsets, VI &sys_vi_cursor, VO &sys_vo_cursor)

Public Attributes inherited from ACQ
const VI	vi_offsets
	byte offset for each Input type in Local Vector In More...

const VO	vo_offsets
	byte offset for each Output type in Local Vector Out More...

const VI	vi_cursor
	index for each Input type in System Interface More...

const VO	vo_cursor
	index for each Output type in System Interface More...

Public Attributes inherited from IO
const VI	vi

const VO	vo

Protected Member Functions inherited from ACQ_HW_MEAN
bool	_newSample (int sample)

Protected Member Functions inherited from ACQ_HW_MULTI
unsigned	tlatch0 (int ib)

Protected Member Functions inherited from ACQ_HW_BASE
	ACQ_HW_BASE (int devnum, string _name, VI _vi, VO _vo, VI _vi_offsets, VO _vo_offsets, VI &sys_vi_cursor, VO &sys_vo_cursor)

virtual	~ACQ_HW_BASE ()

virtual void	arm (int nsamples)
	prepare to run a shot nsamples long, arm the UUT. More...

virtual unsigned	tlatch (void)
	returns latest tlatch from lbuf More...

Protected Member Functions inherited from ACQ
	ACQ (int devnum, string _name, VI _vi, VO _vo, VI _vi_offsets, VO _vo_offsets, VI &sys_vi_cursor, VO &sys_vo_cursor)

virtual	~ACQ ()

Protected Attributes inherited from ACQ_HW_MEAN
const int &	nmean

unsigned *	dox

int **	raw

unsigned *	tl0_array

int	verbose

Protected Attributes inherited from ACQ_HW_MULTI
int	pw32_double_buffer

int	nb

int **	raw

unsigned *	tl0_array

int	verbose

Protected Attributes inherited from ACQ_HW_BASE
Dev *	dev

unsigned	tl0

unsigned *	dox

int	sample

const int	spix

int	pw32_double_buffer

Protected Attributes inherited from ACQ
bool	nowait
	newSample doesn't block for new Tlatch (eg bolo in set with non bolo uuts). More...

unsigned	wd_mask
	watchdog mask. More...

int	pollcount

int	devnum
	AFHBA404 device numbers 0..N. More...

Detailed Description

takes mean of N samples, newSample returns true after skip samples

Definition at line 453 of file AcqHw.cpp.

Constructor & Destructor Documentation

◆ ACQ_HW_MEAN_SKIPPER()

ACQ_HW_MEAN_SKIPPER::ACQ_HW_MEAN_SKIPPER	(	int	devnum,
		string	_name,
		VI	_vi,
		VO	_vo,
		VI	_vi_offsets,
		VO	_vo_offsets,
		VI &	_sys_vi_cursor,
		VO &	_sys_vo_cursor,
		int	_nmean,
		int	_nskip
	)

inline

Definition at line 456 of file AcqHw.cpp.

Member Function Documentation

◆ newSample()

bool ACQ_HW_MEAN_SKIPPER::newSample ( int sample )

virtual

checks host buffer for new sample, if so copies to lbuf and reports true

Parameters

sample checks host buffer for new sample, if so copies to lbuf and reports true

Reimplemented from ACQ_HW_MEAN.

Definition at line 469 of file AcqHw.cpp.

The documentation for this class was generated from the following file:

ACQPROC/AcqHw.cpp
